Lub luag haujlwm tseem ceeb
Muaj peb lub tsho thiab plaub sab qauv, ua kom zoo tsim los ntawm lub computer, yooj yim, kev lag luam thiab tswv yim.thiab cartridge valve integrated system yog siv rau hydraulic tswj system, nrog txhim khu kev qha, kev pab lub neej thiab hydraulic poob, txo txoj kab kev txuas thiab ntu ntsiab lus. cov cuab yeej hluav taws xob ua hauj lwm ua hauj lwm nti tawm ncaj qha thiab khiav ncaj qha, yooj yim rau maintenance.the khawm yog tsim rau centralized tswj, nrog kho (jog) thiab ib qho (semi-auto) kev ua hauj lwm mode.two txoj kev ua nrog kev mob stroke thiab qhov siab yog attainable, featuring siab tswj lub sijhawm thiab ncua sij hawm qeeb dua.Qhov kev ua hauj lwm siab thiab hlab ntsha tawg muaj peev xwm kho tau raws li teev cia raws li cov txheej txheem yuav tsum tau ua.

Lub ntsiab nta
Daim ntawv thov: no series hydraulic xovxwm yog siv rau kev kos duab, khoov, flanging, txias extrusion, blanking thiab lwm yam txheej txheem txog cov ntaub ntawv hlau, ib qho ntxiv rau calibration, xovxwm haum, thiab compression molding txog hmoov khoom, abrasive khoom, yas khoom thiab insulating cov ntaub ntawv.

Cov twj yeem pab xaiv

Cov khoom ua si tsis zoo / lub teeb txawb tiv thaiv ntaus / roj txias installation / kov cov khoom / knockout ntaus (hydraulic lossis mechanical) / pwm ceev clamping mechanism / teb PLC / floating qhia thiab rolling bracket hloov pwm / nyiaj siv hydraulic zog / zawv zawg nrig thaiv txoj cai.

qauv	Nominal siab	Ua kua siab (Mpa)	Zais zis thaiv mob hlab ntsha tawg (hli)	Qhib qhov siab ( hli)	Hydraulic cushion nominal force (KN)	Hydraulic lub nrig txoj hlab ntsha tawg (KN)	Xaub ceev (hli / s)			Workbench zoo npaum li cas		Qhov ntev ntawm hydraulic cushion		Lub cev muaj zog
qauv	Nominal siab	Ua kua siab (Mpa)	Zais zis thaiv mob hlab ntsha tawg (hli)	Qhib qhov siab ( hli)	Hydraulic cushion nominal force (KN)	Hydraulic lub nrig txoj hlab ntsha tawg (KN)	Huab cua txoj kev (hli / s)	Haujlwm (hli / s)	Rov mus txawv tebchaws (hli / s)	Sab laug thiab txoj cai (hli)	Pem hauv ntej thiab sab nraum qab (hli)	Sab laug thiab nraub qaum (hli)	Pem hauv ntej thiab sab nraum qab (hli)
YJH27-250	2500	25	700	1000 xyoo	500 * 2	260	260	7-15	90	1300	1000 xyoo	1100	660	15
YJH27-315	3150	25	800	1100	500 * 2	300	300	5-12	60	1300	1200	1120	810	18.5
YJH27-315	3150	25	800	1100	500 * 2	300	300	5-12	60	1600	1300	1420	970	18.5
YJH27-400	4000	25	800	1250	500 * 2	300	300	4-10	70	1600	1300	1420	970	22
YJH27-500	5000	25	900	1500	500 * 2	350	350	7-15	80	1400	1400	970	970	22
YJH27-630	6300	26	900	1500	400 * 4	350	350	5-12	85	2200	1600	1600	1100	2 * 18.5
YJH27-630A	3150 * 2	26	1200	Xyoo 1750	400 * 6	400	400	5-12	85	3200	2200	2650	1600	2 * 18.5
YJH27-800	8000	25	1000 xyoo	1800	400 * 4	400	400	5-12	95	2200	1600	1600	1100	2 * 22
YJH27-800A	800	26	1200	Xyoo 1750	400 * 6	400	400	5-12	95	3500	2500	2900	1900	2 * 22
YJH27-1000	10000	25	1000 xyoo	1800	500 * 4	400	400	5-12	85	2500	1800	2020	1270	2 * 30
YJH27-1250	6300 * 2	25	1300	1800	500 * 6	400	400	5-12	85	3500	2500	2920	1420	2 * 37
YJH27-1600	5000 * 3	25	1500	2000	500 * 6	500	500	5-12	70	4000	2600	3220	2020	3 * 30
YJH27-2000	6300 * 2 + 8000	25	1600	2000	500 * 8	500	500	4-10	75	4600	2600	3820	2020	3 * 37

FAQ

Uas yog txoj cai xovxwm los yog machinery rau koj?
Hauv particular, nws tsis yooj yim qhia txog txoj cai rau ib daim ntawv thov. Cov specifications tau kos nkaus xwb los ntawm cov kws tshwj xeeb & engineers, tom qab kev sib tham cov neeg muas zaub.
Dab tsi yog qhov zoo tshaj plaws uas kuv xav tias yuav tsum muaj cov tshuab Jianha ?
Peb xav txog qhov khoom ua tau zoo tshaj li qhov tseem ceeb tshaj plaws ntawm lub luag haujlwm.Thaum ntawm tus cwj pwm no, peb tsim cov txheej txheem los tswj thiab saib xyuas tag nrho cov txheej txheem ntawm kev tsim rau zoo dua qub.Cov kev ua haujlwm zoo tshaj plaws rau kev tshawb fawb, kev tsim, tshuaj ntsuam, kev xeem, muag thiab tom qab muag qhov kev pab cuam, peb ib txwm ua haujlwm rau lub tshuab zoo tshaj plaws thiab muab cov kev pab cuam zoo tshaj plaws rau peb cov qhua.

Yuav ua li cas hais txog kev muag khoom tom qab muag?

24-teev technical support los ntawm email los yog nyob rau ntawm kab, Neeg siv phau ntawv Askiv phau ntawv siv rau kev siv thiab tswj.

Koj puas siv khoom?
Muaj. Peb muaj lub ntiaj teb c lass infrastructure los tsim ntau hom hydraulic presses thiab CNC ntsug tshuab hauv ntau configurations nrog rau cov qauv txheem thiab nchuav tsim.

Koj puas muab kev daws teeb meem?

Tag nrho peb cov kev daws teeb meem yog raws li kev nyiam ntawm cov neeg muas zaub.

Dab tsi Jianha lub cav ?
Jianha machinery muaj ntau yam ntawm Xovxwm thiab CNC ntsug tshuab dhos. xws li hydraulic xovxwm, compression molding presses, sib sib zog nqus drawing presses, yas molding machine, CNC ntsug tshuab dhos, CNC drilling tshuab, CNC machining chaw, thiab lwm yam.

Yuav ua li cas rau nruab lub tshuab?

Peb yuav xa cov kws kho tsheb tawm sab nrauv thiab kev cob qhia rau peb cov qhua tuaj noj mov.

Yog tias koj xav tau kev pab ntau tshaj plaub sab thiab peb nqaj siab ceev ceev hydraulic xovxwm los pab nrog koj tus lag luam, thov so kom txaus siab rau lag luam nrog peb. Peb yog ib tus ua lag luam xws li cov khw muag khoom thiab cov khoom siv nyob hauv Suav nrog ntau tshaj 20 xyoo keeb kwm. Thiab qhov kev pabcuam tshwjxeeb no kuj muaj.

Cim npe nrov: multifunction plaub sab thiab peb beam siab ceev hydraulic xovxwm, Tuam Tshoj, lwm tus neeg, manufacturers, lag luam wholesale, customized

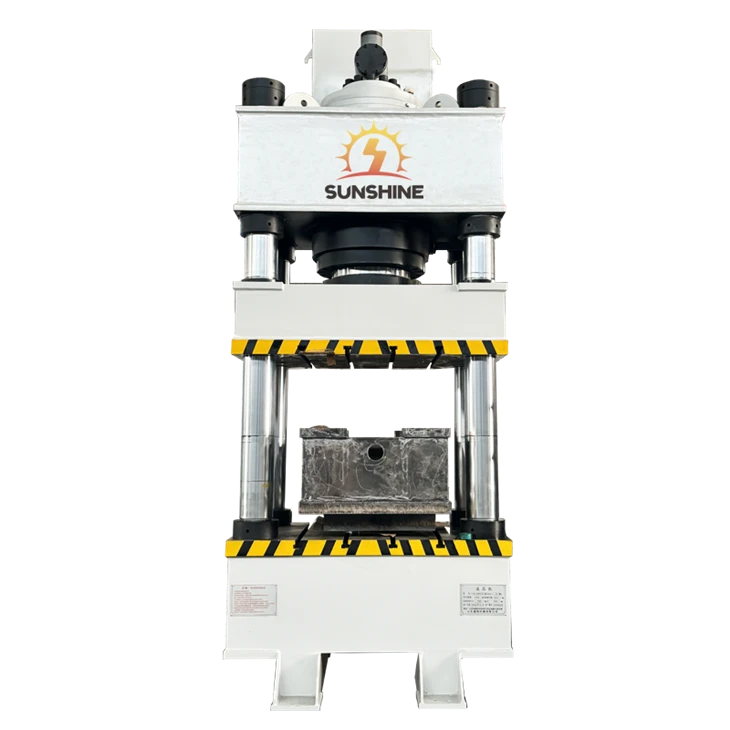

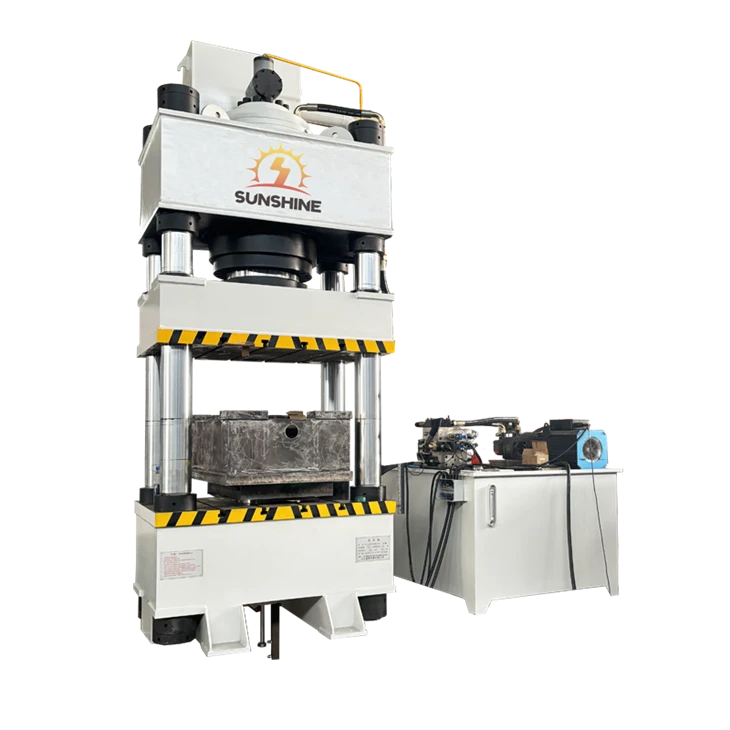

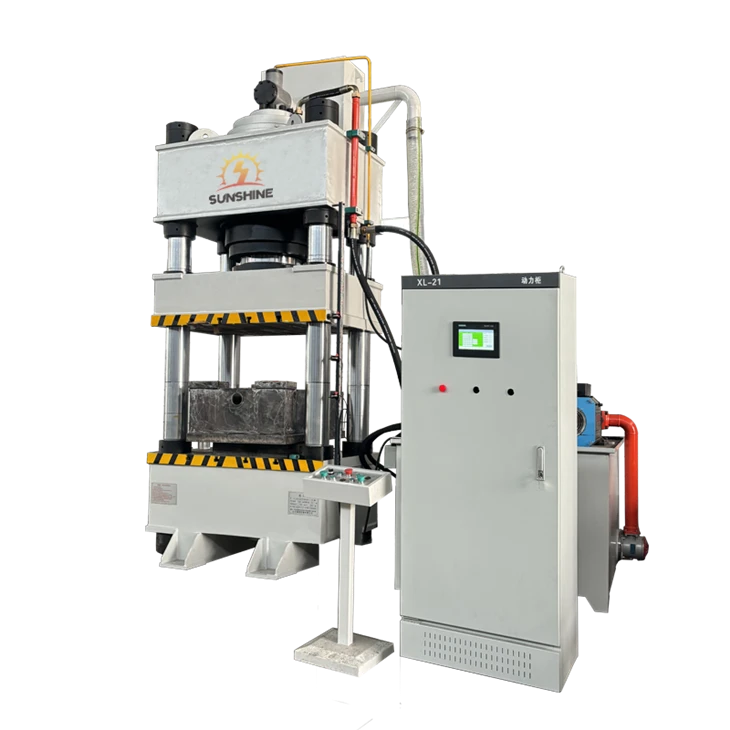

Multifunction Plaub Sab thiab Peb Beam Siab Kub Hydraulic Xovxwm
